Commercially pure nickel with minimum 99.6% nickel content for exceptional purity and consistency.
Offers outstanding resistance to caustic alkalis, chlorine, and a wide range of corrosive environments.
Exhibits excellent electrical and thermal conductivity for electronic and electrical applications.
Available in multiple forms including bar, sheet, plate, pipe, wire, and strip.
Product Details
Nickel 200 (UNS N02200) is a commercially pure wrought nickel alloy with exceptional mechanical properties across a broad temperature range. It demonstrates excellent ductility and formability, allowing for easy fabrication through cold forming, machining, and welding. This alloy maintains its integrity in applications requiring low gas content and low vapor pressure. Typical uses include chemical processing equipment, caustic evaporators, electronic components, lead wires, battery terminals, and food handling equipment. Each product is supplied with full material traceability and mill test certificates (EN 10204 Type 3.1) upon request.
Technical Specifications
| Parameter | Details |
|---|---|
| UNS Number | N02200 |
| Wnr | 2.4066 |
| Nickel Content | 99.6% min |
| Density | 8.89 g/cm³ |
| Melting Range | 1435 – 1446°C (2615 – 2635°F) |
| Tensile Strength (Annealed) | 380 – 550 MPa |
| Yield Strength (Annealed) | 100 – 310 MPa |
| Elongation (Annealed) | 40 – 60% |
| Hardness (Annealed) | 80 – 120 HB |
Chemical Composition
| Element | Content (%) |
|---|---|
| Nickel (Ni) | 99.6 min |
| Iron (Fe) | 0.40 max |
| Carbon (C) | 0.15 max |
| Manganese (Mn) | 0.35 max |
| Silicon (Si) | 0.35 max |
| Sulfur (S) | 0.01 max |
| Copper (Cu) | 0.25 max |
Physical Properties
| Property | Value |
|---|---|
| Density | 8.89 g/cm³ (0.321 lb/in³) |
| Melting Point | 1435 – 1446°C (2615 – 2635°F) |
| Electrical Resistivity | 0.096 µΩ·m (20°C) |
| Thermal Conductivity | 70.2 W/m·K (20°C) |
| Coefficient of Thermal Expansion | 13.3 µm/m·°C (20 – 100°C) |
| Modulus of Elasticity | 207 GPa |
| Magnetic Properties | Magnetic up to 360°C |
Available Forms & Specifications
| Product Form | Size Range | Specifications |
|---|---|---|

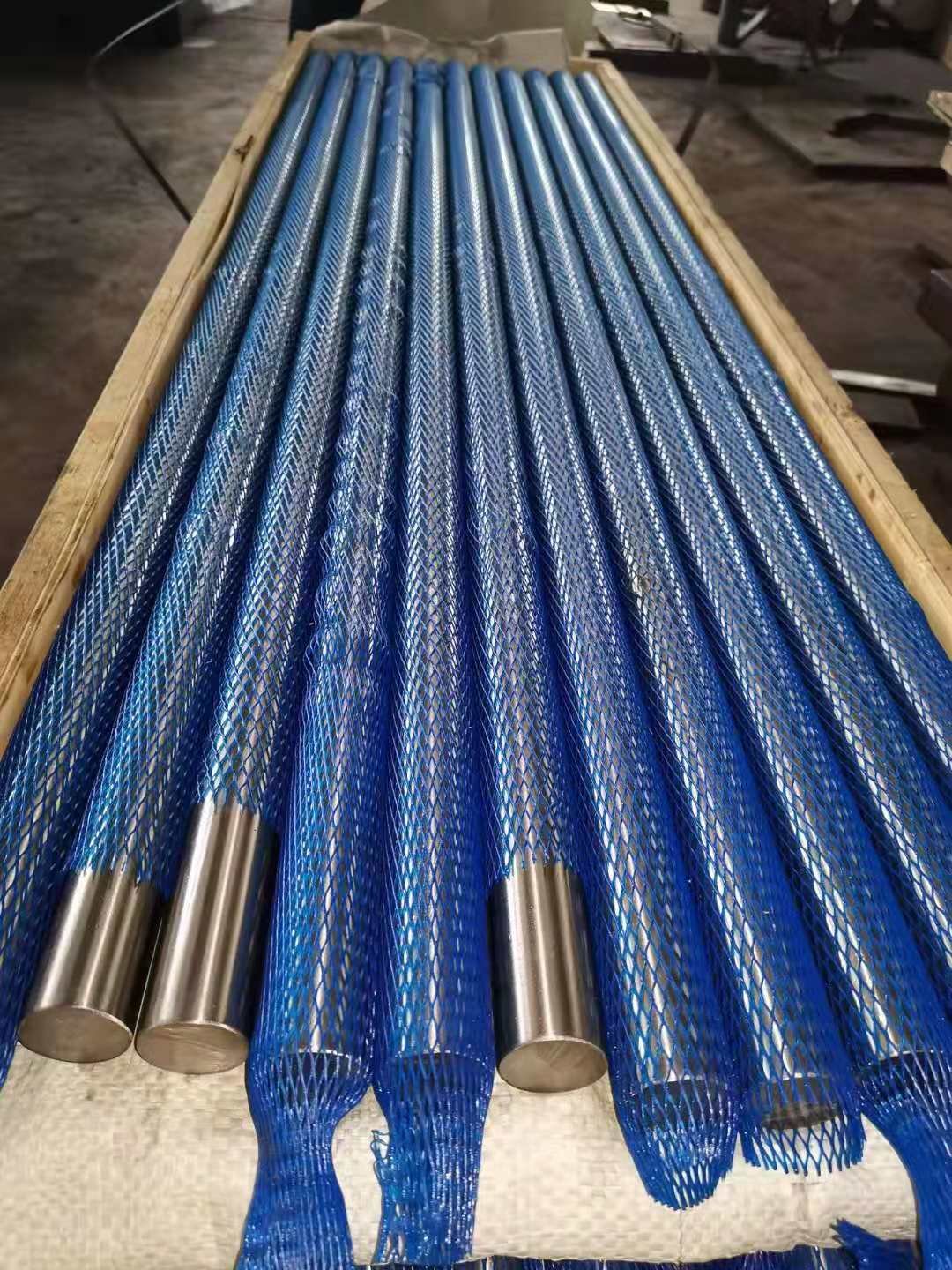

| Bar & Rod | 3mm – 300mm diameter | ASTM B162, ASME SB-162, QQ-N-281 |

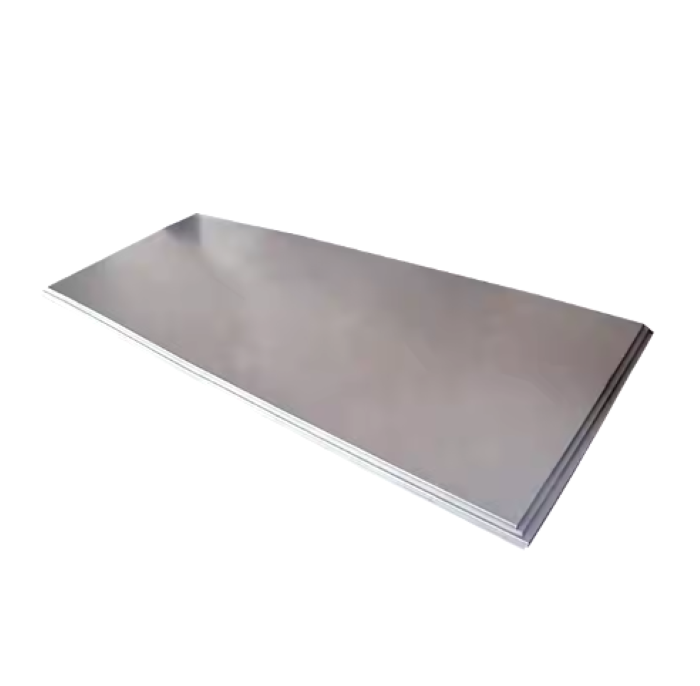

| Sheet & Strip | 0.5mm – 5mm thickness | ASTM B162, ASME SB-162, AMS 5550 |
| Plate | 5mm – 100mm thickness | ASTM B162, ASME SB-162 |

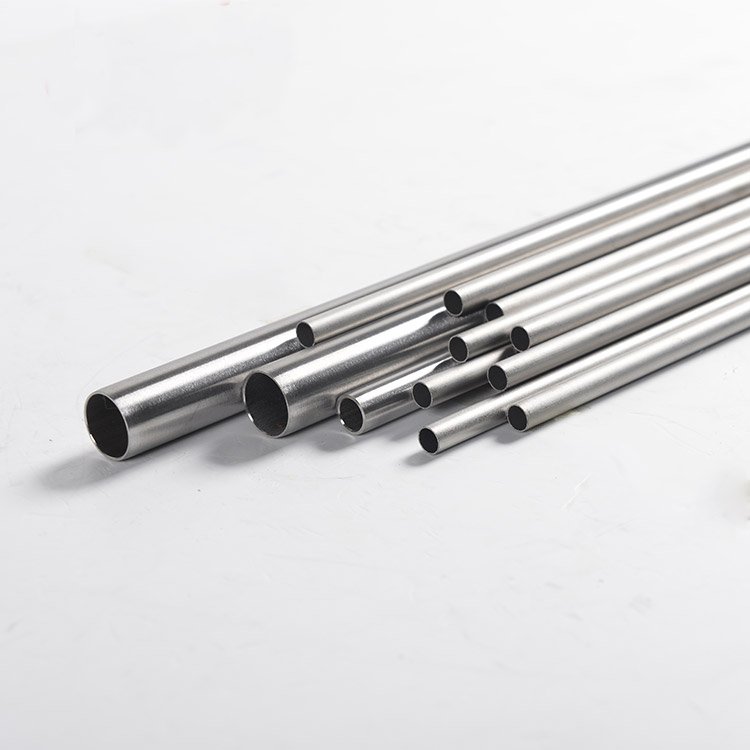

| Pipe & Tube | Custom sizes | ASTM B161, B163, B725 |

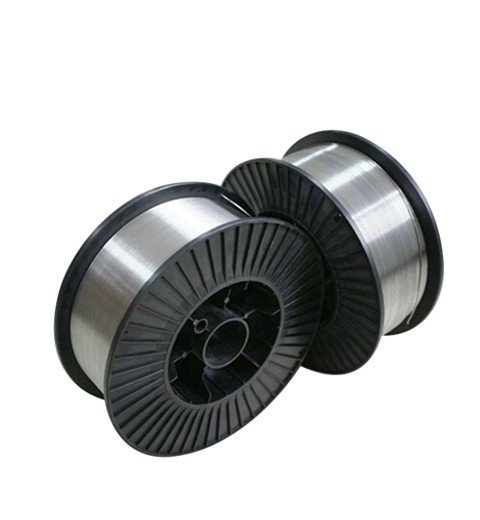

| Wire | 0.1mm – 12mm diameter | ASTM B162, QQ-N-281 |
Applications
| Industry | Applications |
|---|---|
| Chemical Processing | Caustic evaporators, chlorine handling equipment, synthetic fiber production |
| Electronics | Battery terminals, lead wires, electrical contacts, capacitor casings |
| Aerospace | Electronic components, sensor housings |
| Food Processing | Food handling equipment, dairy processing, salt production |
| Marine | Seawater components, pump parts |
| General Industrial | Heat exchangers, pressure vessels, storage tanks |
