Forged to refine grain structure, ensuring superior strength and impact resistance.
Manufactured from premium stainless steel grades including 304, 316, 321, and 347.
Offers excellent corrosion resistance for demanding chemical and marine environments.
Compliant with ASTM A182 and ASME specifications for critical service applications.
Product Details

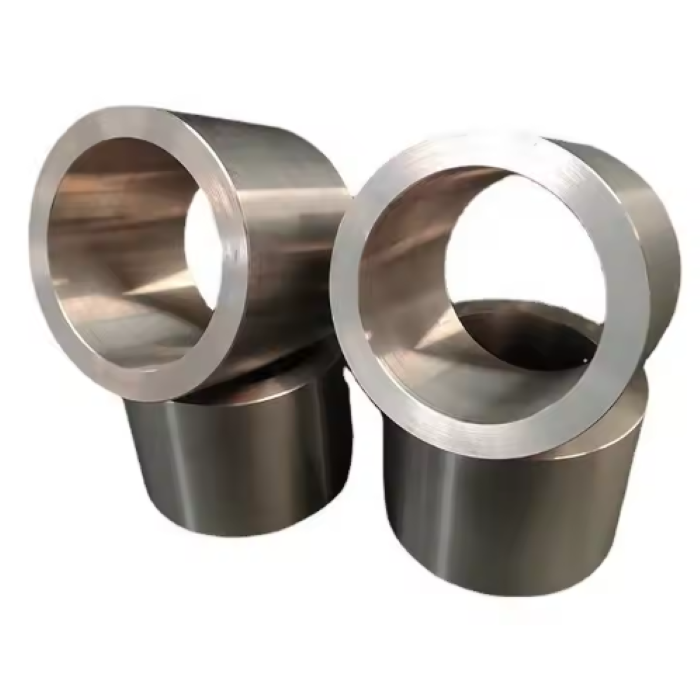

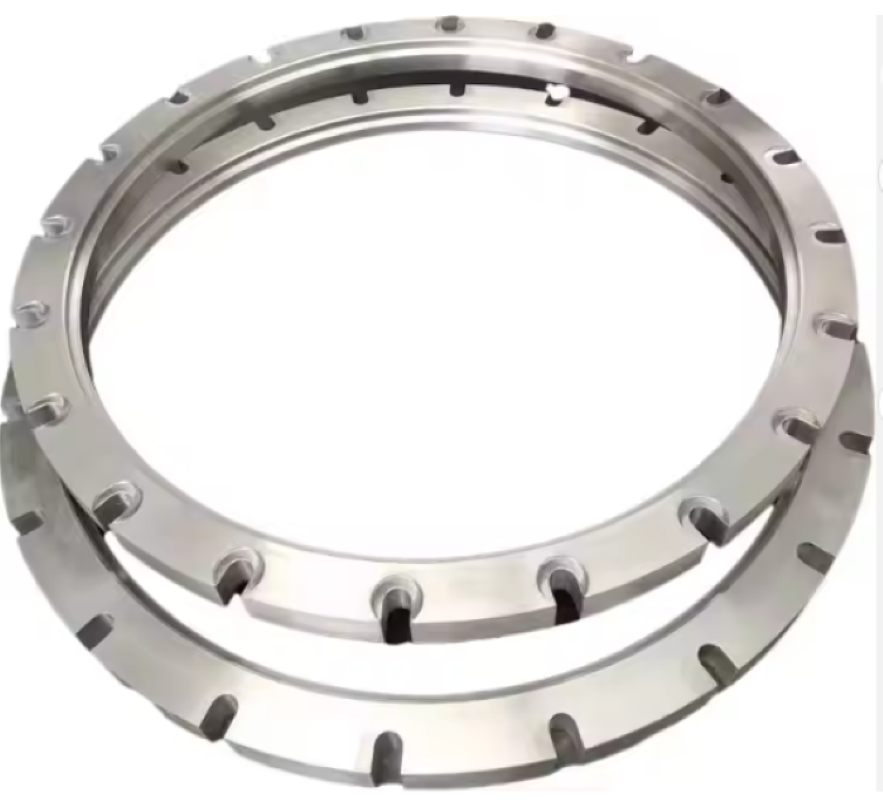

These forged rings are produced through precision hot forging processes, resulting in seamless construction with consistent wall thickness and dimensional accuracy. Available in custom diameters up to 120 inches, each ring undergoes rigorous inspection including dimensional checks, positive material identification (PMI), and ultrasonic examination. Full material traceability and EN 10204 Type 3.1 certification are provided upon request
Grade:
200 Series: 201,202
300 Series: 301,304,304L,316,316L,316Ti,317L,321,309s,310s
400 Series: 409L,410,410s,420j1,420j2,430,444,441,436
Duplex stainless steel :2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039 904L,etc
S22053,S25073,S22253,S31803,S32205,S32304
Special Stainless Steel:904L,347/347H,317/317L,316Ti,254Mo
| Material Supply: | ||||||||||||
ASTM/ASME | EN Grade | Chemical Component % | ||||||||||
C | Cr | Ni | Mn | P | S | Mo | Si | Cu | N | Other | ||
201 | ≤0.15 | 16.00-18.00 | 3.50-5.50 | 5.50－7.50 | ≤0.060 | ≤0.030 | – | ≤1.00 | – | ≤0.25 | – | |
301 | 1.4310 | ≤0.15 | 16.00-18.00 | 6.00-8.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤1.00 | – | 0.1 | – |
304 | 1.4301 | ≤0.08 | 18.00-20.00 | 8.00-10.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤0.75 | – | – | – |
304L | 1.4307 | ≤0.030 | 18.00-20.00 | 8.00-10.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤0.75 | – | – | – |
304H | 1.4948 | 0.04~0.10 | 18.00-20.00 | 8.00-10.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤0.75 | – | – | – |
309S | 1.4828 | ≤0.08 | 22.00-24.00 | 12.00-15.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤0.75 | – | – | – |
309H | 0.04~0.10 | 22.00-24.00 | 12.00-15.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤0.75 | – | – | – | |
310S | 1.4842 | ≤0.08 | 24.00-26.00 | 19.00-22.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤1.5 | – | – | – |
310H | 1.4821 | 0.04~0.10 | 24.00-26.00 | 19.00-22.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤1.5 | – | – | – |
316 | 1.4401 | ≤0.08 | 16.00-18.50 | 10.00-14.00 | ≤2.00 | ≤0.045 | ≤0.030 | 2.00-3.00 | ≤0.75 | – | – | – |
316L | 1.4404 | ≤0.030 | 16.00-18.00 | 10.00-14.00 | ≤2.00 | ≤0.045 | ≤0.030 | 2.00-3.00 | ≤0.75 | – | – | – |
316H | 0.04~0.10 | 16.00-18.00 | 10.00-14.00 | ≤2.00 | ≤0.045 | ≤0.030 | 2.00-3.00 | ≤0.75 | – | 0.10-0.22 | – | |
316Ti | 1.4571 | ≤0.08 | 16.00-18.50 | 10.00-14.00 | ≤2.00 | ≤0.045 | ≤0.030 | 2.00-3.00 | ≤0.75 | – | – | Ti5(C+N)~0.7 |
317L | 1.4438 | ≤0.03 | 18.00-20.00 | 11.00-15.00 | ≤2.00 | ≤0.045 | ≤0.030 | 3.00-4.00 | ≤0.75 | – | 0.1 | – |
321 | 1.4541 | ≤0.08 | 17.00-19.00 | 9.00-12.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤0.75 | – | 0.1 | Ti5(C+N)~0.7 |
321H | 1.494 | 0.04~0.10 | 17.00-19.00 | 9.00-12.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤0.75 | – | 0.1 | Ti4(C+N)~0.7 |
347 | 1.4550 | ≤0.08 | 17.00-19.00 | 9.00-13.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤0.75 | – | – | Nb≥10*C%-1.0 |
347H | 1.4942 | 0.04~0.10 | 17.00-19.00 | 9.00-13.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤0.75 | – | – | Nb≥8*C%-1.0 |
409 | S40900 | ≤0.03 | 10.50-11.70 | 0.5 | ≤1.00 | ≤0.040 | ≤0.020 | – | ≤1.00 | – | 0.03 | Ti6(C+N)-0.5 Nb0.17 |
430 | S43000 | ≤0.12 | 16.00-18.00 | 0.75 | ≤1.00 | ≤0.040 | ≤0.030 | – | ≤1.00 | – | – | – |
436 | S43600 | ≤0.025 | 16.00-19.00 | – | ≤1.00 | ≤0.040 | ≤0.030 | 0.75-1.0 | ≤1.00 | ≤0.025 | Nb+Ti:8(C+N)~0.80 | |
439 | S43035 | ≤0.030 | 17.50-18.50 | – | ≤1.00 | ≤0.040 | ≤0.015 | – | ≤1.00 | – | ≤0.030 | Ti+Nb:0.2+4C~0.75 |
441 | S44100 | ≤0.030 | 17.50-18.50 | – | ≤1.00 | ≤0.040 | ≤0.015 | – | ≤1.00 | – | ≤0.030 | Ti:0.1-0.6 Nb:3C+0.3~1.0 |
442 | S44200 | ≤0.025 | 18.0-23.0 | – | ≤1.00 | ≤0.040 | ≤0.035 | – | ≤1.00 | – | ||
443 | S44300 | ≤0.025 | 19.5-22.0 | – | ≤1.00 | ≤0.035 | ≤0.015 | – | ≤1.00 | – | ≤0.025 | Nb+Ti:0.2+4(C+N)~0.75 |
444 | S44400 | ≤0.025 | 17.00-20.00 | – | ≤1.00 | ≤0.040 | ≤0.030 | 1.75-2.5 | ≤1.00 | ≤0.035 | Ti+Nb:0.2+4(C+N)~0.8 | |
446 | S44600 | ≤0.2 | 23.0-27.0 | 0.75 | ≤1.50 | ≤0.040 | ≤0.030 | – | ≤1.00 | 0.25 | ||
410 | 1Cr13 | 0.08~0.15 | 11.50-13.50 | – | ≤1.00 | ≤0.040 | ≤0.030 | – | ≤1.00 | – | – | – |
410J1 | 1Cr13Mo | 0.08-0.18 | 11.50-14.00 | – | ≤1.00 | ≤0.040 | ≤0.030 | 0.30-0.60 | ≤1.00 | – | – | – |
420 | 2Cr13 | ≥0.15 | 12.00-14.00 | – | ≤1.00 | ≤0.040 | ≤0.030 | – | ≤1.00 | – | – | – |
420J2 | 3Cr13 | 0.26-0.35 | 12.00-14.00 | – | ≤1.00 | ≤0.040 | ≤0.030 | – | ≤1.00 | – | – | – |
4Cr13 | 0.36-0.45 | 12.00-14.00 | – | ≤1.00 | ≤0.040 | ≤0.030 | – | ≤1.00 | – | – | – | |
431 | 1Cr17Ni2 | ≤0.2 | 15.00-17.00 | 1.25-2.50 | ≤1.00 | ≤0.040 | ≤0.030 | – | ≤1.00 | – | – | – |
440C | 11Cr17 | 0.95-1.20 | 16.00-18.00 | – | ≤1.00 | ≤0.040 | ≤0.030 | 0.75 | ≤1.00 | – | – | – |
17-4PH | 630/1.4542 | ≤0.07 | 15.50-17.50 | 3.00-5.00 | ≤1.00 | ≤0.040 | ≤0.030 | – | ≤1.00 | 3.00-5.00 | – | Nb+Ta:0.15-0.45 |
17-7PH | 631 | ≤0.09 | 16.00-18.00 | 6.50-7.50 | ≤1.00 | ≤0.040 | ≤0.030 | – | ≤1.00 | – | – | Al 0.75-1.50 |
