Manufactured from premium stainless steel grades including 304, 304L, 316, 316L, and 321.
Designed to meet ANSI B16.5, ASME, and ASTM A182 standards for reliable performance.
Offers excellent corrosion resistance for chemical, petrochemical, and marine piping systems.
Available in multiple types including weld neck, slip-on, blind, socket weld, and threaded

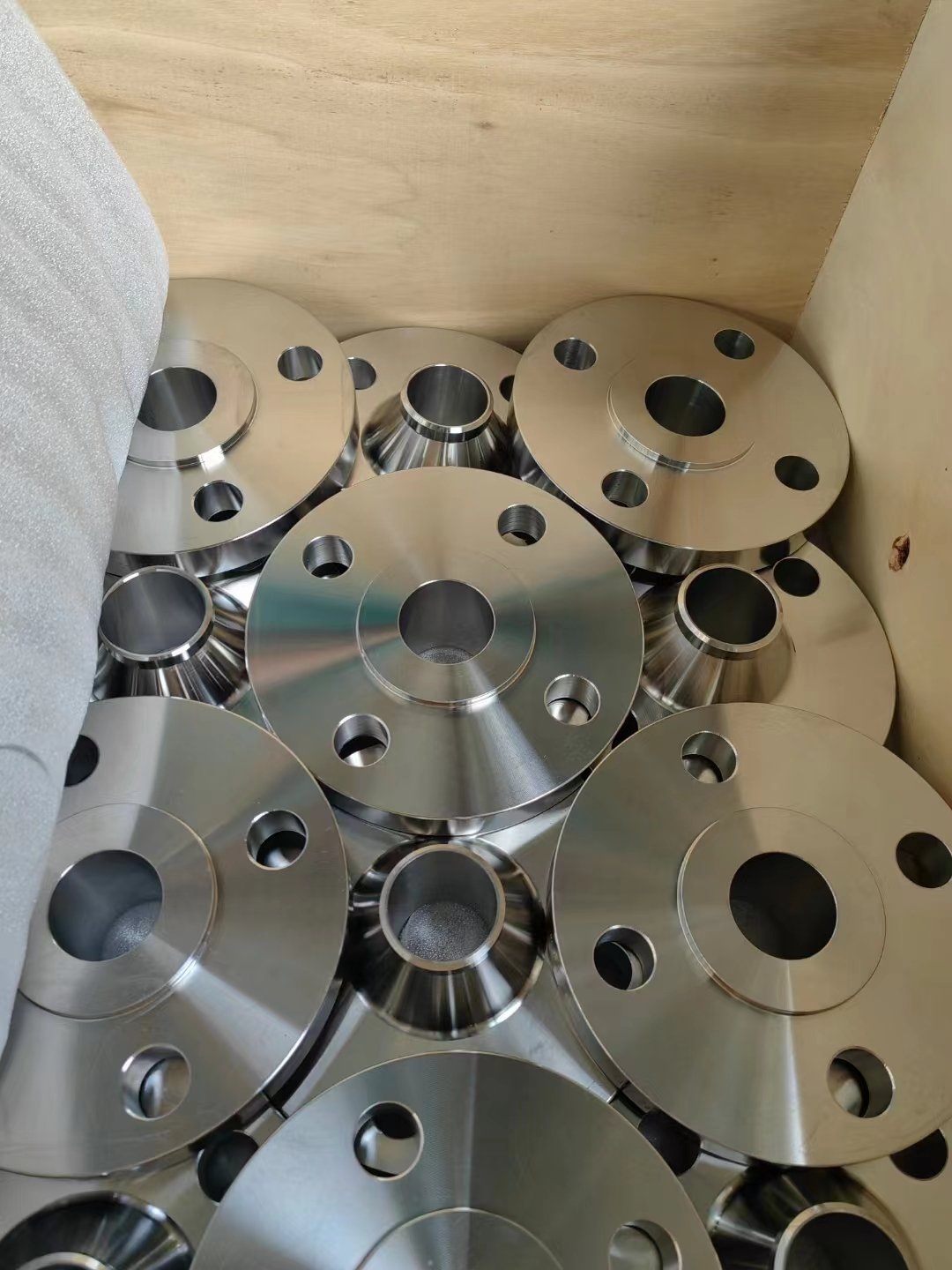

Stainless Steel Flange
Stainless steel flanges are essential piping components used to connect pipes, valves, pumps, and other equipment in pipeline systems. They provide easy access for cleaning, inspection, or modification of piping systems.
We manufacture and supply high-quality stainless steel flanges with excellent corrosion resistance, high strength, and precise dimensional accuracy, suitable for industrial, marine, chemical, and oil & gas applications.
Key Features
- Excellent corrosion and oxidation resistance
- High strength and pressure resistance
- Precise machining and tight dimensional tolerance
- Easy installation and maintenance
- Wide range of sizes and pressure ratings
- Suitable for high-temperature and high-pressure environments
Available Stainless Steel Grades
- 304 / 304L stainless steel flanges
- 316 / 316L stainless steel flanges
- 321 stainless steel flanges
- 410 / 420 stainless steel flanges
- Duplex 2205 stainless steel flanges
- Super Duplex 2507 stainless steel flanges
- 17-4PH stainless steel flanges

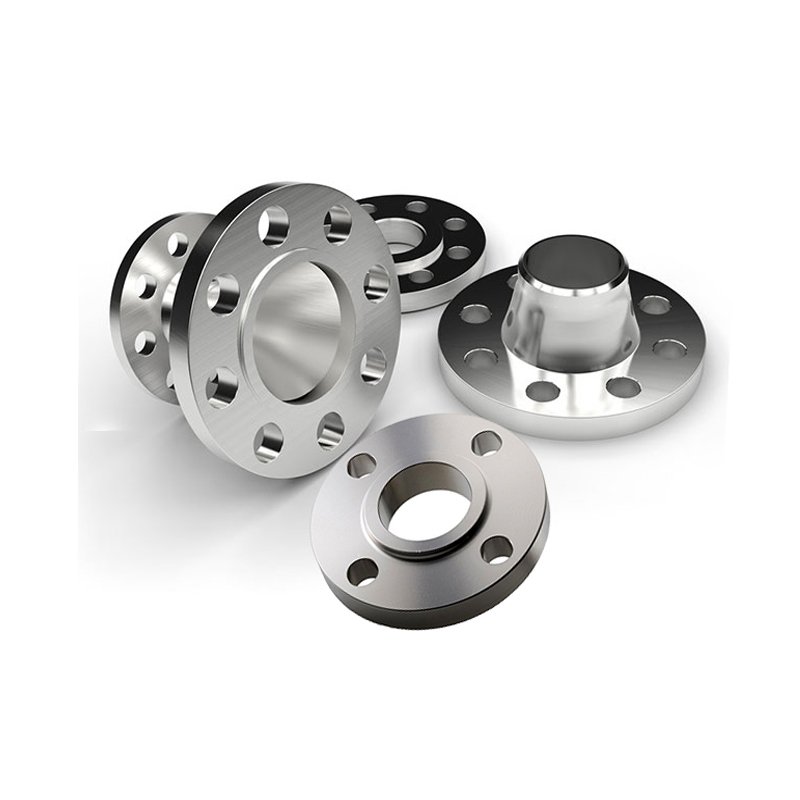

Types of Stainless Steel Flanges
- Weld Neck Flange (WN)
- Slip-On Flange (SO)
- Blind Flange (BL)
- Threaded Flange
- Socket Weld Flange
- Lap Joint Flange
- Orifice Flange
- Custom CNC-machined flanges
Standards & Specifications
- ANSI / ASME B16.5
- ASME B16.47 Series A & B
- DIN / EN 1092-1
- JIS B2220
- BS / ISO standards
Pressure Ratings
- Class 150
- Class 300
- Class 600
- Class 900
- Class 1500
- Class 2500
Applications
- Oil & gas pipeline systems
- Chemical processing plants
- Marine and offshore engineering
- Power generation systems
- Water treatment systems
- Food and beverage industry
- Petrochemical equipment
- Industrial piping systems
Contact us now for a quotation
Email: sales@hengyimetal.com
WhatsApp: +86 19521258704
| Parameter | Details |
|---|---|
| Material Grades | Grade: 200 Series: 201,202 Duplex stainless steel :2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039 904L,etc |
| Standards | ANSI B16.5, ASME B16.5, ASTM A182, API 6A |
| Pressure Classes | 150, 300, 600, 900, 1500, 2500 |
| Flange Types | Weld Neck, Slip-On, Blind, Socket Weld, Threaded, Lap Joint |
| Size Range | 1/2″ to 60″ (custom sizes available) |
| Facing Types | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ) |
| Surface Finish | Smooth machined, serrated, or custom |
Flange Types & Applications
| Flange Type | Description | Typical Applications |
|---|---|---|
| Weld Neck | Features a tapered hub for high-strength, high-pressure applications | High-pressure pipelines, refineries, power plants |
| Slip-On | Slides over pipe and welded both inside and outside | Low to medium pressure applications, general industrial |
| Blind | Solid flange used to close pipe ends or pressure vessels | Pipe termination, maintenance access points |
| Socket Weld | Pipe inserts into socket and welded | Small diameter, high-pressure systems |
| Threaded | Internal threads for connection without welding | Low pressure, non-critical applications |
| Lap Joint | Used with stub end for easy alignment | Systems requiring frequent disassembly |
| Material Supply: | ||||||||||||
ASTM/ASME | EN Grade | Chemical Component % | ||||||||||
C | Cr | Ni | Mn | P | S | Mo | Si | Cu | N | Other | ||
201 | ≤0.15 | 16.00-18.00 | 3.50-5.50 | 5.50－7.50 | ≤0.060 | ≤0.030 | – | ≤1.00 | – | ≤0.25 | – | |
301 | 1.4310 | ≤0.15 | 16.00-18.00 | 6.00-8.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤1.00 | – | 0.1 | – |
304 | 1.4301 | ≤0.08 | 18.00-20.00 | 8.00-10.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤0.75 | – | – | – |
304L | 1.4307 | ≤0.030 | 18.00-20.00 | 8.00-10.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤0.75 | – | – | – |
304H | 1.4948 | 0.04~0.10 | 18.00-20.00 | 8.00-10.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤0.75 | – | – | – |
309S | 1.4828 | ≤0.08 | 22.00-24.00 | 12.00-15.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤0.75 | – | – | – |
309H | 0.04~0.10 | 22.00-24.00 | 12.00-15.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤0.75 | – | – | – | |
310S | 1.4842 | ≤0.08 | 24.00-26.00 | 19.00-22.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤1.5 | – | – | – |
310H | 1.4821 | 0.04~0.10 | 24.00-26.00 | 19.00-22.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤1.5 | – | – | – |
316 | 1.4401 | ≤0.08 | 16.00-18.50 | 10.00-14.00 | ≤2.00 | ≤0.045 | ≤0.030 | 2.00-3.00 | ≤0.75 | – | – | – |
316L | 1.4404 | ≤0.030 | 16.00-18.00 | 10.00-14.00 | ≤2.00 | ≤0.045 | ≤0.030 | 2.00-3.00 | ≤0.75 | – | – | – |
316H | 0.04~0.10 | 16.00-18.00 | 10.00-14.00 | ≤2.00 | ≤0.045 | ≤0.030 | 2.00-3.00 | ≤0.75 | – | 0.10-0.22 | – | |
316Ti | 1.4571 | ≤0.08 | 16.00-18.50 | 10.00-14.00 | ≤2.00 | ≤0.045 | ≤0.030 | 2.00-3.00 | ≤0.75 | – | – | Ti5(C+N)~0.7 |
317L | 1.4438 | ≤0.03 | 18.00-20.00 | 11.00-15.00 | ≤2.00 | ≤0.045 | ≤0.030 | 3.00-4.00 | ≤0.75 | – | 0.1 | – |
321 | 1.4541 | ≤0.08 | 17.00-19.00 | 9.00-12.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤0.75 | – | 0.1 | Ti5(C+N)~0.7 |
321H | 1.494 | 0.04~0.10 | 17.00-19.00 | 9.00-12.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤0.75 | – | 0.1 | Ti4(C+N)~0.7 |
347 | 1.4550 | ≤0.08 | 17.00-19.00 | 9.00-13.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤0.75 | – | – | Nb≥10*C%-1.0 |
347H | 1.4942 | 0.04~0.10 | 17.00-19.00 | 9.00-13.00 | ≤2.00 | ≤0.045 | ≤0.030 | – | ≤0.75 | – | – | Nb≥8*C%-1.0 |
409 | S40900 | ≤0.03 | 10.50-11.70 | 0.5 | ≤1.00 | ≤0.040 | ≤0.020 | – | ≤1.00 | – | 0.03 | Ti6(C+N)-0.5 Nb0.17 |
430 | S43000 | ≤0.12 | 16.00-18.00 | 0.75 | ≤1.00 | ≤0.040 | ≤0.030 | – | ≤1.00 | – | – | – |
436 | S43600 | ≤0.025 | 16.00-19.00 | – | ≤1.00 | ≤0.040 | ≤0.030 | 0.75-1.0 | ≤1.00 | ≤0.025 | Nb+Ti:8(C+N)~0.80 | |
439 | S43035 | ≤0.030 | 17.50-18.50 | – | ≤1.00 | ≤0.040 | ≤0.015 | – | ≤1.00 | – | ≤0.030 | Ti+Nb:0.2+4C~0.75 |
441 | S44100 | ≤0.030 | 17.50-18.50 | – | ≤1.00 | ≤0.040 | ≤0.015 | – | ≤1.00 | – | ≤0.030 | Ti:0.1-0.6 Nb:3C+0.3~1.0 |
442 | S44200 | ≤0.025 | 18.0-23.0 | – | ≤1.00 | ≤0.040 | ≤0.035 | – | ≤1.00 | – | ||
443 | S44300 | ≤0.025 | 19.5-22.0 | – | ≤1.00 | ≤0.035 | ≤0.015 | – | ≤1.00 | – | ≤0.025 | Nb+Ti:0.2+4(C+N)~0.75 |
444 | S44400 | ≤0.025 | 17.00-20.00 | – | ≤1.00 | ≤0.040 | ≤0.030 | 1.75-2.5 | ≤1.00 | ≤0.035 | Ti+Nb:0.2+4(C+N)~0.8 | |
446 | S44600 | ≤0.2 | 23.0-27.0 | 0.75 | ≤1.50 | ≤0.040 | ≤0.030 | – | ≤1.00 | 0.25 | ||
410 | 1Cr13 | 0.08~0.15 | 11.50-13.50 | – | ≤1.00 | ≤0.040 | ≤0.030 | – | ≤1.00 | – | – | – |
410J1 | 1Cr13Mo | 0.08-0.18 | 11.50-14.00 | – | ≤1.00 | ≤0.040 | ≤0.030 | 0.30-0.60 | ≤1.00 | – | – | – |
420 | 2Cr13 | ≥0.15 | 12.00-14.00 | – | ≤1.00 | ≤0.040 | ≤0.030 | – | ≤1.00 | – | – | – |
420J2 | 3Cr13 | 0.26-0.35 | 12.00-14.00 | – | ≤1.00 | ≤0.040 | ≤0.030 | – | ≤1.00 | – | – | – |
4Cr13 | 0.36-0.45 | 12.00-14.00 | – | ≤1.00 | ≤0.040 | ≤0.030 | – | ≤1.00 | – | – | – | |
431 | 1Cr17Ni2 | ≤0.2 | 15.00-17.00 | 1.25-2.50 | ≤1.00 | ≤0.040 | ≤0.030 | – | ≤1.00 | – | – | – |
440C | 11Cr17 | 0.95-1.20 | 16.00-18.00 | – | ≤1.00 | ≤0.040 | ≤0.030 | 0.75 | ≤1.00 | – | – | – |
17-4PH | 630/1.4542 | ≤0.07 | 15.50-17.50 | 3.00-5.00 | ≤1.00 | ≤0.040 | ≤0.030 | – | ≤1.00 | 3.00-5.00 | – | Nb+Ta:0.15-0.45 |
17-7PH | 631 | ≤0.09 | 16.00-18.00 | 6.50-7.50 | ≤1.00 | ≤0.040 | ≤0.030 | – | ≤1.00 | – | – | Al 0.75-1.50 |
